CAT24C03, CAT24C05
2-Kb and 4-Kb I 2 C Serial
EEPROM with Partial Array
Write Protection
Description
The CAT24C03/05 is a 2 ? Kb/4 ? Kb CMOS Serial EEPROM device
organized internally as 16/32 pages of 16 bytes each, for a total of
256x8/512x8 bits. These devices support both Standard (100 kHz) as
well as Fast (400 kHz) I 2 C protocol.
Data is written by providing a starting address, then loading 1 to 16
http://onsemi.com
contiguous bytes into a Page Write Buffer, and then writing all data to
non ? volatile memory in one internal write cycle. Data is read by
providing a starting address and then shifting out data serially while
PDIP ? 8
L SUFFIX
CASE 646AA
TSOT ? 23
TD SUFFIX
CASE 419AE
SOIC ? 8
W SUFFIX
CASE 751BD
automatically incrementing the internal address count.
Write operations can be inhibited for upper half of memory by
taking the WP pin High.
External address pins make it possible to address up to eight
CAT24C03 or four CAT24C05 devices on the same bus.
TSSOP8
Y SUFFIX
CASE 948AL
TDFN8
VP2 SUFFIX
CASE 511AK
Features
? Supports Standard and Fast I 2 C Protocol
? 1.8 V to 5.5 V Supply Voltage Range
? 16 ? Byte Page Write Buffer
? Hardware Write Protection for Upper Half of Memory
? Schmitt Triggers and Noise Suppression Filters on I 2 C Bus Inputs
(SCL and SDA)
? Low Power CMOS Technology
? 1,000,000 Program/Erase Cycles
? 100 Year Data Retention
? Industrial Temperature Range
? These Devices are Pb ? Free, Halogen Free/BFR Free and are RoHS
Compliant
V CC
PIN CONFIGURATIONS
TSOT ? 23 (TD)
SCL 1 5 WP
V SS 2
SDA 3 4 V CC
PDIP (L), SOIC (W),
TSSOP (Y), TDFN (VP2)
CAT24C05/03
NC/A 0 1 8 V CC
A 1 /A 1 2 7 WP
A 2 /A 2 3 6 SCL
V SS 4 5 SDA
(Top Views)
PIN FUNCTION
SCL
Pin Name
A0, A1, A2
Function
Device Address Inputs
A 2 , A 1 , A 0
WP
CAT24C03
CAT24C05
SDA
SDA
SCL
WP
Serial Data Input/Output
Serial Clock Input
Write Protect Input
V CC
Power Supply
V SS
V SS
NC
Ground
No Connect

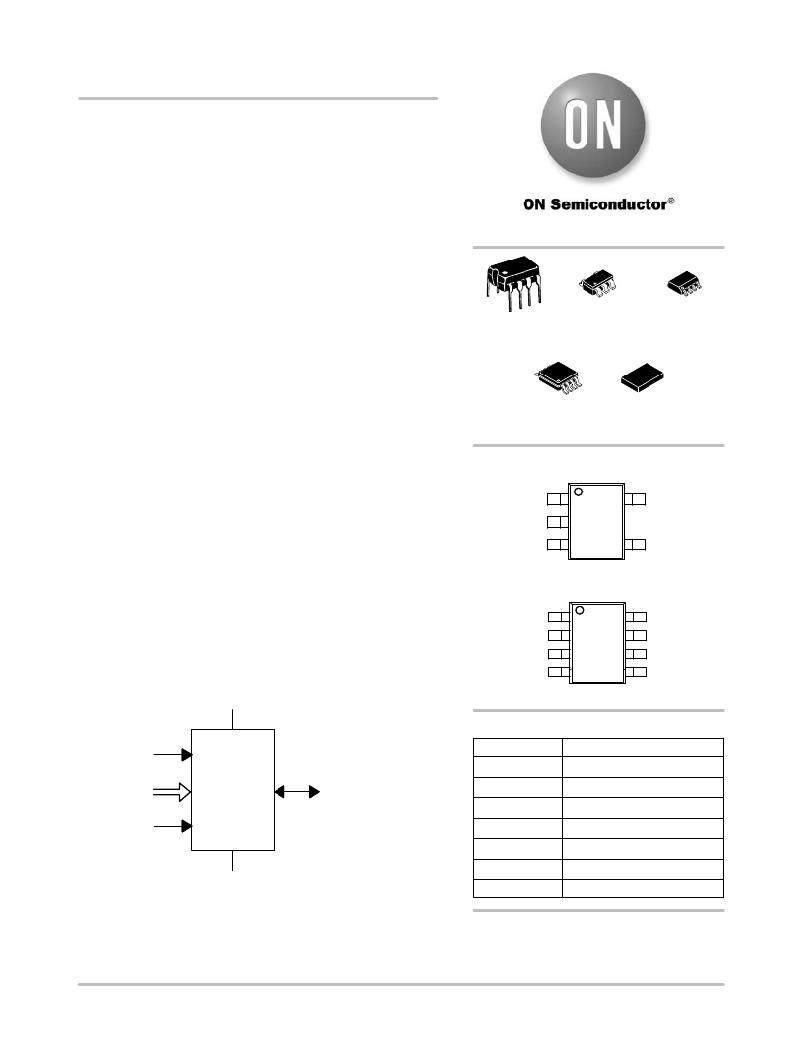

Figure 1. Functional Symbol
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 14 of this data sheet.
? Semiconductor Components Industries, LLC, 2009
August, 2009 ? Rev. 3
1
Publication Order Number:
CAT24C03/D
